Overview
The CX6 is a compact, rugged loudspeaker designed to integrate effortlessly into a wide variety of systems and installation environments. Built around a coaxial driver arrangement, it delivers consistent, point-source performance from a highly compact enclosure — an ideal choice for discreet foreground, fill, and distributed audio applications.
The low-frequency section features a weatherproofed paper cone with a durable thermoplastic surround, while high frequencies are reproduced by a compression driver with a 1″ voice coil and polymer diaphragm, delivering smooth, natural response with excellent intelligibility and controlled dispersion.
Designed for flexible deployment, the CX6 incorporates four M10 rigging points and four rear-mounted M6 threads for compatibility with a wide range of mounting solutions. Two parallel Neutrik® NL4 SpeakOn™ connectors are fitted to the rear with all pins linked. The cabinet is constructed from sustainably sourced 12mm birch plywood and finished in a durable black PU coating with a 2mm perforated steel grille.
Specifications
| S P E C I F I C A T I O N S | |
| Type | Compact 6″ coaxial loudspeaker |
| Frequency Response 1 | 80Hz – 18kHz |
| HF Driver | 1″ compression driver with a conical horn |
| LF Driver | 6″ transducer with weatherproofed cone |
| Power Handling HF 2 | N/A |
| Power Handling 2 | 200W Program |
| Recommended Amplifier | Traction Engine 4|1000-DSP |
| Sensitivity 2 | 95dB |
| Maximum SPL 4 | 121dB Peak |
| Nominal Impedance | 8 Ohms |
| Crossover | Internal passive network |
| Connectors | 2× Neutrik® NL4 SpeakOn™ with pins linked (input on 1+/−) |
| Nominal Dispersion (−6dB) | 70° conical |
| Primary Construction | 12mm Birch Plywood |
| Available Finish | Black PU coating |
| Dimensions (H × D × W) | 284mm × 106mm × 214mm |
| Fittings | 4× M10 threads | 4× M6 threads |
| Weight | 7.25 kg |
| Available Accessories | CX6 U-bracket | CX6 Dual Carry Bag |
1 Measured on axis in half (2π) space at two metres and referred to 1 metre. With DSP preset applied.
2 Tested to AES 2-1984 Rev. 2003.
3 Measured in half (2π) space at 2 metres with 2.83V input, using band-limited pink noise, then referred to 1 metre.
4 Calculated at 1 metre.

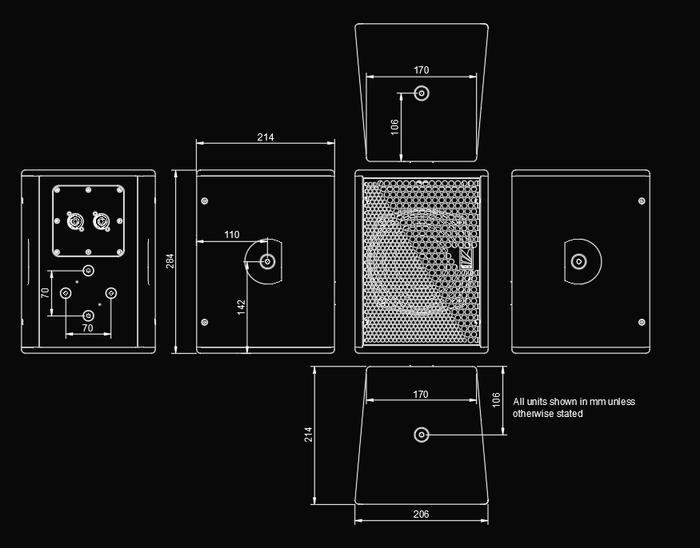

Dimensions
